Best DIN Rail Fiber Patch Panel Guide for Easy Fiber Management
Answering the search intent: this guide highlights top DIN rail fiber patch panels that simplify mounting, organization, and maintenance for fiber networks. It helps buyers choose products that fit DIN rail or surface mounting, with clear indications of best uses, limits, and compatibility. The selections cover multi-adapter configurations, singlemode and multimode options, and compact enclosures. This overview is useful for network installers, data-center technicians, and integrators seeking reliable, space-saving patch panels that streamline patching and future upgrades.
Summary table of chosen products (at a glance):
| Product | Mounting | Key Adapters | Best For | Notes |
|---|---|---|---|---|
| Fiber Optic Patch Panel – DIN Rail or Wall Mount | DIN Rail or Wall | ST, SC, LC multimode | Mixed multimode networks | Made in USA; steel construction |
| fyboptwu 12 Fibers LC Singlemode DIN Rail Enclosure | DIN Rail | 12 LC singlemode pigtails | High-density singlemode runs | Cold rolled steel, corrosion resistant |
| DINSpace SNAP-12LC-SM Compact Patch Panel | DIN Rail or Surface | 12 LC-SM ports | Compact singlemode layouts | UL Listed; CE; lifetime warranty |
| Duogalia LC-UPC 6 Duplex 12 Port DIN Rail SM | DIN Rail | 6 duplex LC-UPC | Medium-density SM fiber | Color-coded 12 strands for ease |
| Duogalia SC-APC 6 Simplex 6 Port DIN Rail SM | DIN Rail | 6 simplex SC-APC | SC-APC patching | Low insertion loss; complete kit |
Fiber Optic Patch Panel – DIN Rail or Wall Mount with ST, SC, and LC Multimode Adapter Plates
This patch panel is designed for mixed multimode deployments. It supports DIN rail or wall mounting, offering flexibility in small to mid-size racks. The included adapter plates cover ST, SC, and LC connectors, simplifying patching across different fiber types. Best for installers needing a compact, versatile panel for multimode networks in telecom closets or equipment rooms. A potential limitation is the need to purchase additional adapters if you expand beyond the included ST/SC/LC configurations.
fyboptwu – 12 Fibers LC Singlemode DIN Rail Fiber Optic Enclosure Rack Box
Best for high-density singlemode runs in compact spaces. This enclosure offers 12 LC-UPC fibers with a 1.2 m spool and a thick reinforced plate, providing low insertion loss and strong temperature stability. It’s ideal for data centers or network rooms where precise, low-back-reflection performance matters. Avoid this if you need multimode adapters or SC/ST options beyond LC-UPC variants.
DINSpace SNAP-12LC-SM Compact Fiber Optic Patch Panel
Better for compact, SM fiber layouts with LC connections. This panel is mountable on DIN rail or surface and carries UL Listed 1863 and CE marks, signaling compliance. It’s particularly suitable for installations requiring a small footprint with reliable, long-term materials and workmanship warranties. A limitation to note is that it focuses on LC/SM configurations, so multimode options are less evident in this variant.

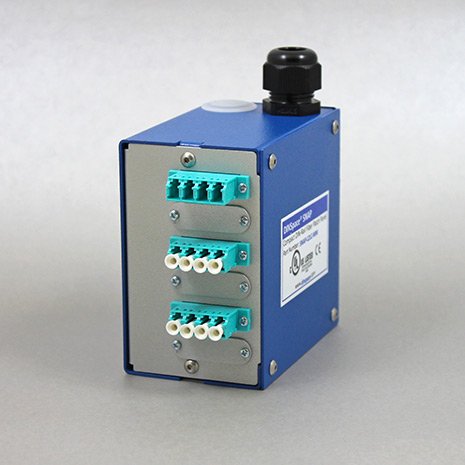

DINSpace SNAP-12LC-MM OM3/4 Compact Patch Panel
Best for multimode OM3/OM4 networks with LC adapters. This DIN-rail or surface-mount panel includes three OM3/OM4 multimode LC/LC adapters, offering a balance between density and patching flexibility. It suits campus backbones or small data centers expanding toward multimode fiber. If your project centers on singlemode, this may be less optimal than LC-SM variants.
Duogalia LC-UPC 6 Duplex 12 Port DIN Rail SM Enclosure
Choose this for moderate-density singlemode setups with color-coded 12 strands for easy identification. It features a 1.2 m pigtail, low insertion loss, and a complete accessory kit. It’s best for technicians who prioritize quick, error-free deployment in SM networks and appreciate a plug-and-play approach. Be aware that the kit’s emphasis is on singlemode LC-UPC, not SC or multimode options.
Duogalia SC-APC 6 Simplex 6 Port DIN Rail SM Enclosure
Best for simplex SC-APC networks or point-to-point runs needing precise end-face angles. This 6-simplex SC-APC kit includes a 1.2 m pigtail and a robust set of accessories, designed for environments where APC termination and consistent back reflection control are critical. A potential limitation is that it covers fewer ports than some 12-port variants, so higher density may require multiple units or a different configuration.
Buying Guide: Key Purchase Considerations
- Mounting compatibility: Determine whether you need DIN rail, wall, or surface mounting based on your enclosure layout and available space.
- Connector types: Choose LC, SC, or ST adapters depending on your existing fiber backbone and future upgrades. LC is common for high-density, SC-APC for precise end-face termination.
- Singlemode vs multimode: Singlemode (SM) is typical for long-haul and high-precision links; multimode (MM) supports shorter runs and higher data rates in campus or data-center closets.
- Density and capacity: Count ports and consider if you need 6, 12, or more lanes. Some enclosures ship with pre-installed spools or pigtails—verify what’s included.
- Material quality: Powder-coated steel and corrosion resistance increase durability in restricted spaces and environments with temperature variations.
- Compliance and warranties: UL CE listings and lifetime warranties offer long-term reassurance for critical deployments.
- Cable management: Look for integrated trays, color-coding, and organized patching to minimize mispatches and downtime.
- Installation ease: Plug-and-play kits with complete accessory sets save setup time and reduce errors during maintenance.
FAQ
- What is a DIN rail fiber patch panel used for?
A: It organizes and protects fiber connections in a compact, standardized mounting rail for clean, scalable network patches in telecom rooms and data centers. - Which connector type should I choose for new installations?
A: LC is common for high-density networks, while SC-APC suits low-back-reflection requirements. Match connector type to existing backbone and patching practices. - Can I mount these panels on walls?
A: Yes, several models support DIN rail or wall/surface mounting, offering flexibility for tight spaces and varied room layouts. - What should I consider about OM3/OM4 multimode options?
A: OM3/OM4 support higher-bandwidth multimode links; ensure the patch panel includes the correct LC adapters and spacing for your fiber count. - Do these panels come with installation hardware?
A: Many kits include spools, pigtails, and couplers; verify the included accessories to avoid purchasing extras separately. - Are these panels suitable for outdoor use?
A: Most are not rated for outdoor exposure; look for enclosures with appropriate environmental ratings if outdoor installation is required.
