Best Shaded Pole Condenser Fan Motors for Refrigeration and HVAC Needs
If you need reliable shaded pole condenser fan motors, these five options cover common voltages, speeds, and form factors used in refrigeration equipment and small cooling systems. They’re best for technicians, DIYers, or facility managers looking to replace worn motors with OEM- or compatible parts. The table below highlights core specs to help compare at a glance.
| Product | Voltage | Power | Speed | Best For |
|---|---|---|---|---|
| FASCO Shaded Pole Condenser Fan Motor | 208/230V | 1/20 HP | ~1550 RPM | OEM replacement, Heatcraft compatibility |
| 00807 Shaded Pole Condenser Fan Motor | 115V | 9 W | 1550 RPM | Smaller units, standard 115V systems |
| YZF18-25 Fan Motor (UHEGDRR) | 120V | 18 W | 1550 RPM | Widely compatible, multiple brands |
| YZF18-25 Fan AC Motor (Vanesa) | 120V | 18 W | 1550 RPM | Easy replaceability, broad compatibility |
| Condenser Fan AC Motor YZF18-25 (WEFUMOT) | 120V | 18 W | 1550 RPM | UL-listed, durable sleeve bearings |

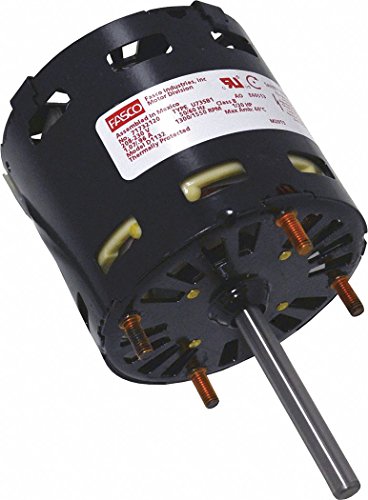

FASCO Shaded Pole Condenser Fan Motor, 1/20 HP
The FASCO D1132 motor is an OEM option designed for Heatcraft units, offering 1/20 HP at about 1550 RPM and a 208-230V single-phase supply. This motor uses sleeve bearings and is positioned as a direct OEM replacement for specific Heatcraft condensers. Best for HVAC technicians performing Heatcraft replacements or shop technicians who maintain Heatcraft equipment. A potential limitation is compatibility: verify model fit with your Heatcraft condenser before ordering.
00807 Shaded Pole Condenser Fan Motor
This 115V motor operates at 9 W with a speed of about 1550 RPM. It is listed as compatible with EC-9W115 and related part numbers, indicating broad compatibility with various condenser assemblies. Best for smaller condensers or retrofit projects where 115V operation is standard. A caveat is that “Totally enclosed” and “continuous air over” configurations should be confirmed for your enclosure design.
YZF18-25 Fan Motor (UHEGDRR)
This 120V motor delivers 18 W of output with an 1550 RPM speed and a rated airflow of about 940 m³/h. It’s positioned as a versatile replacement across multiple refrigeration brands and models, including Heatcraft-compatible units. Best for technicians who need a robust, widely compatible motor and want to minimize cross-model part hunting. Consider noting the listed compatible replacements (YZF6-13 and YZF10-20) to ensure exact feed-through compatibility.
YZF18-25 Fan AC Motor (Vanesa)
Another 120V 18 W shaded pole motor, the Vanesa model emphasizes easy installation and broad brand compatibility, including Atosa, Avantco, Fasco, Elco, Supco, and Mars. Best for service techs performing direct cross-brand replacements without complicated adapters. A limitation is the note that the item does not include a fan blade, so you’ll need to source that separately.
Condenser Fan AC Motor YZF18-25 (WEFUMOT)
This WE—FUMOT model is a UL-certified 120V, 18 W motor with a continuous-duty capability. It features sleeve bearings and is designed for condenser fans in refrigeration equipment. Best for facilities requiring UL-listed parts and long service life. A potential caveat is confirming ambient temperature tolerance and blade compatibility with your existing condenser housing.
Buying Guide
- Voltage compatibility: Most 120V units are common for residential and light commercial equipment, while 208/230V motors fit larger condensers. Ensure your system voltage matches the motor.
- Power and speed: 18 W to 9 W motors provide different cooling capacities. For tight spaces, a compact, low-power motor may be sufficient; for larger condensers, a higher-capacity option helps maintain airflow.
- Mounting and bearing type: Sleeve bearings are typical for shaded pole motors and can affect service life. Confirm enclosure design and lubrication needs when selecting.
- OEM vs. compatible: OEM replacements (Heatcraft compatibility) can simplify installation, but cross-brand replacements offer flexibility. Verify shaft size, mounting pattern, and rotation direction (CWSE vs CCWSE) to avoid misalignment.
- Installation considerations: Some models may not include blades or mounting hardware. Plan for sourcing blades, brackets, or adapters if needed.
- Certifications and safety: UL/CSA listings add reliability. Check for overheat protection and operating temperature ranges when selecting for extreme environments.
- Service life and availability: RoHS-compliant materials and corrosion resistance improve longevity in humid refrigeration settings. Consider brands with readily available replacements.
Quick comparison: What to choose
- Best for Heatcraft OEM replacements: FASCO Shaded Pole Condenser Fan Motor
- Best budget option for 115V systems: 00807 Shaded Pole Condenser Fan Motor
- Best for broad compatibility across brands: YZF18-25 (UHEGDRR, WE, ZeeKee variants)
- Best for UL-listed reliability: WE-FUMOT YZF18-25
Frequently Asked Questions
- What is a shaded pole condenser fan motor? It is a single-phase motor with shaded poles that provides basic, reliable airflow for condensers and small refrigeration units.
- Are these motors universal replacements? Many are direct or cross-brand replacements, but confirm voltage, RPM, shaft size, and mounting pattern before buying.
- Do these motors include blades? Some listings do not include blades; verify included components to avoid ordering delays.
- What is the typical bearing type? Sleeve bearings are common in shaded pole designs and offer adequate durability for many applications, though service intervals may be longer in dry environments.
- Why choose OEM over compatible? OEM parts often guarantee exact fit and electrical characteristics; compatibles offer flexibility when OEM options are unavailable.
- How do I know if a motor will fit my condenser? Compare voltage, horsepower (or wattage), rotation direction, shaft diameter, and mounting pattern with your unit’s specifications.
