Best Pin and Sleeve Receptacles for Industrial Power
Pin and sleeve receptacles are essential for safe, reliable high-current connections in industrial settings. This guide highlights five trusted models from Walther Electric, Hubbell, and Leviton, chosen for durability, water resistance, and compatibility with widely used IEC and UL standards. Use the quick reference table below to compare core specs at a glance, then explore detailed product sections to understand which option best fits your environment.
| Product | Brand | Key Advantage |
|---|---|---|
| 430419 Pin & Sleeve Receptacle | Walther Electric | Wet-condition safety, IP44 variation |
| HBL430R7W Pin & Sleeve Receptacle | Hubbell | Watertight, high ampacity, red |
| 460419 Pin & Sleeve Receptacle | Walther Electric | IP44 with IP67 options, reliable for harsh environs |
| 5100R9W Pin & Sleeve Receptacle | Leviton | Industrial grade, 100 A, blue |
| M4100R12 Pin & Sleeve Receptacle | Hubbell | 100 A, 125/250 V, American-made |
Walther Electric 430419 Pin & Sleeve Receptacle
Model 430419 provides safe compatibility for matching high-current sources in wet or corrosive environments. This receptacle is available in water-tight (IP67) and splashproof (IP44) configurations to cover diverse pin & sleeve needs. The part number 430R7 denotes the standard industry reference, and Walther Electric emphasizes the use of strong materials to ensure long-lasting reliability in challenging jobs such as welding, motor-gen sets, and compressors.
Hubbell HBL430R7W Pin & Sleeve Receptacle
This 3-pole, 4-wire receptacle operates at 30 amps and up to 480 volts. It is designed for high-ampacity, watertight connections and conforms to UL 498 and IEC 309-1/309-2 standards. The red color coding helps with quick identification in complex electrical systems, and its watertight design supports rugged outdoor or damp installations.
Walther Electric 460419 Pin & Sleeve Receptacle
Model 460419 is a 63-amp, 4-wire receptacle designed for high-power applications, with safe operation in wet conditions. Walther offers IP67 water-tight variants as well as IP44 splashproof options, maintaining reliability across wet and corrosive environments. The part number 460R7 reflects industry-standard compatibility and robust construction for demanding installations like welding and heavy machinery power feeds.

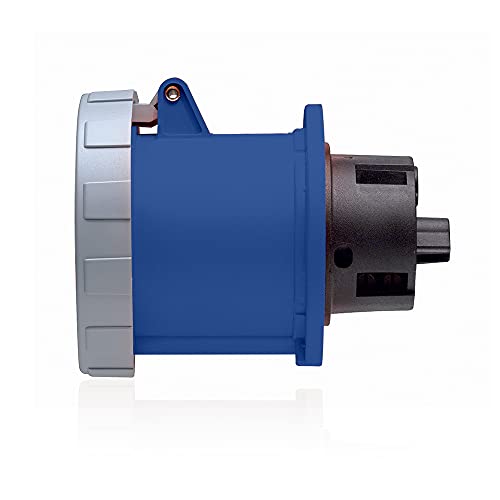

Leviton 5100R9W 100 Amp Receptacle
The Leviton 5100R9W delivers 100 A at 120/208 VAC, designed for industrial-grade pin & sleeve connections with IP67 watertight protection. Its blue device appearance helps distinguish 3-phase, 4-pole configurations in busy electrical rooms. This model emphasizes industrial compatibility and reliable performance under demanding load conditions.
Hubbell IEC Pin & Sleeve Receptacle 100A
Manufactured by Hubbell Wiring Device-Kellems, this 100A, 250V receptacle supports standard IEC configurations and is listed for dependable industrial use in the United States. The model emphasizes compatibility with a broad range of equipment and easy integration into existing power distribution systems.
Hubbell M4100R12 Pin & Sleeve Receptacle
The M4100R12 is a 100A, 125/250V receptacle designed for rugged industrial environments. Hubbell highlights its US-based manufacture and compatibility with standard 3P 4W configurations. The grey finish helps blend into equipment racks and service bays while providing reliable, high-current connections for heavy machines and generators.
Buying Guide
Key considerations when selecting a pin & sleeve receptacle include amperage, voltage rating, and phase configuration (3P 4W, etc.).
- Current rating and voltage: Match the device to your equipment’s requirements. Higher amperage supports heavier loads but may limit compatibility with smaller systems.
- Electrical protection: Look for IP ratings (IP44, IP67) to ensure appropriate resistance to water, dust, and corrosion in your environment.
- Standards and compatibility: Confirm UL/IEC compliance and cross-compatibility with major brands to ensure reliable integration with existing components.
- Environment and installation: Consider whether the installation is indoors, outdoors, or in a wet area, and select a model with the appropriate enclosure protection and mounting options.
- Color coding and identification: Some models use color cues (red, blue, grey) to indicate configuration or phase details, aiding in quick wiring and troubleshooting.
Comparison snapshot:
- Water resistance: IP44 vs IP67 options exist across brands, affecting where you can deploy each receptacle.
- Material and build: Industrial-grade metals and insulated housings provide durability in harsh environments.
- Brand support: Walther, Hubbell, and Leviton offer extensive aftermarket support and availability of matching accessories.
